Cartridges Brand: CCELL Series: Ceramic-EVOMAX

CCELL Ceramic-EVOMAX

Be the first to review

Full Ceramic Cart

The CCELL Ceramic-EVOMAX is a borosilicate glass cartridge built around an EVOMAX ceramic heating element, with a ceramic centre post and a snap-fit mouthpiece. It runs at 1.7Ω with a 4 x Φ2mm aperture in 0.5ml, 1.0ml and 2.0ml sizes, and CCELL lists it as compatible with all oils, including live rosins and liquid diamonds.

  • 0.5ml/1ml Tank
  • 4 x Φ2mm Aperture
  • 1.7Ω Resistance
  • EVOMAX Heating core

Specifications

Tank volume: 0.5ml/1ml

Dimensions: Φ0.43 x 2.12H/2.57H (in) / Φ11.0 x 53.9H/65.2H (mm)

Resistance: 1.7Ω

Aperture size: 4 x Φ2mm

Snap-fit mouthpiece

Borosilicate glass body

Ceramic center post

Heating Core: EVOMAX

Quantity Per Item Price
From£ 1.43
CCELL Ceramic-EVOMAX 510 cartridge with a white mouthpiece and glass tank | 3DevicesCCELL

Custom engraving

Personalize your device

Laser engraving for a premium, long-lasting brand finish. Choose Front or Back, then place your mark inside the dashed box: the flat part the laser can engrave.Laser engraving for a premium, long-lasting brand finish. Place your mark inside the dashed box: the flat part the laser can engrave.

  1. 1Customize
  2. 2Save design
  3. 3WhatsApp proof
  4. 4Production
Engraving add-on is on

Icon presets

Text & font

Position
X 50% · Y 50%

Laser engraving is greyscale, not colour. Uploaded logos are converted to a mark on the device: white on dark finishes, black on light finishes. Use hi-res artwork with clean edges. .jpg, .jpeg, .png, .svg, .pdf.

Intended use

  • These products are only intended for CBD use.
  • Not to be used by minors.

Pairs with: 510 batteries

See all batteries

CCELL Ceramic-EVOMAX is standard 510 thread. Any of these will fit.

Custom branding

Laser engraving

Make the hardware unmistakably yours. We laser-engrave your logo, batch marks or micro text onto CCELL batteries, pods and selected all-in-ones: a sharp, permanent mark that will not rub or peel off, ordered together with your hardware.

  1. Send your artwork Vector files work best (AI, EPS or SVG).
  2. Approve a proof We engrave a small batch first so you can check the result.
  3. We engrave your order Artwork, colour and quantity go on the same order as your hardware.
See laser engraving

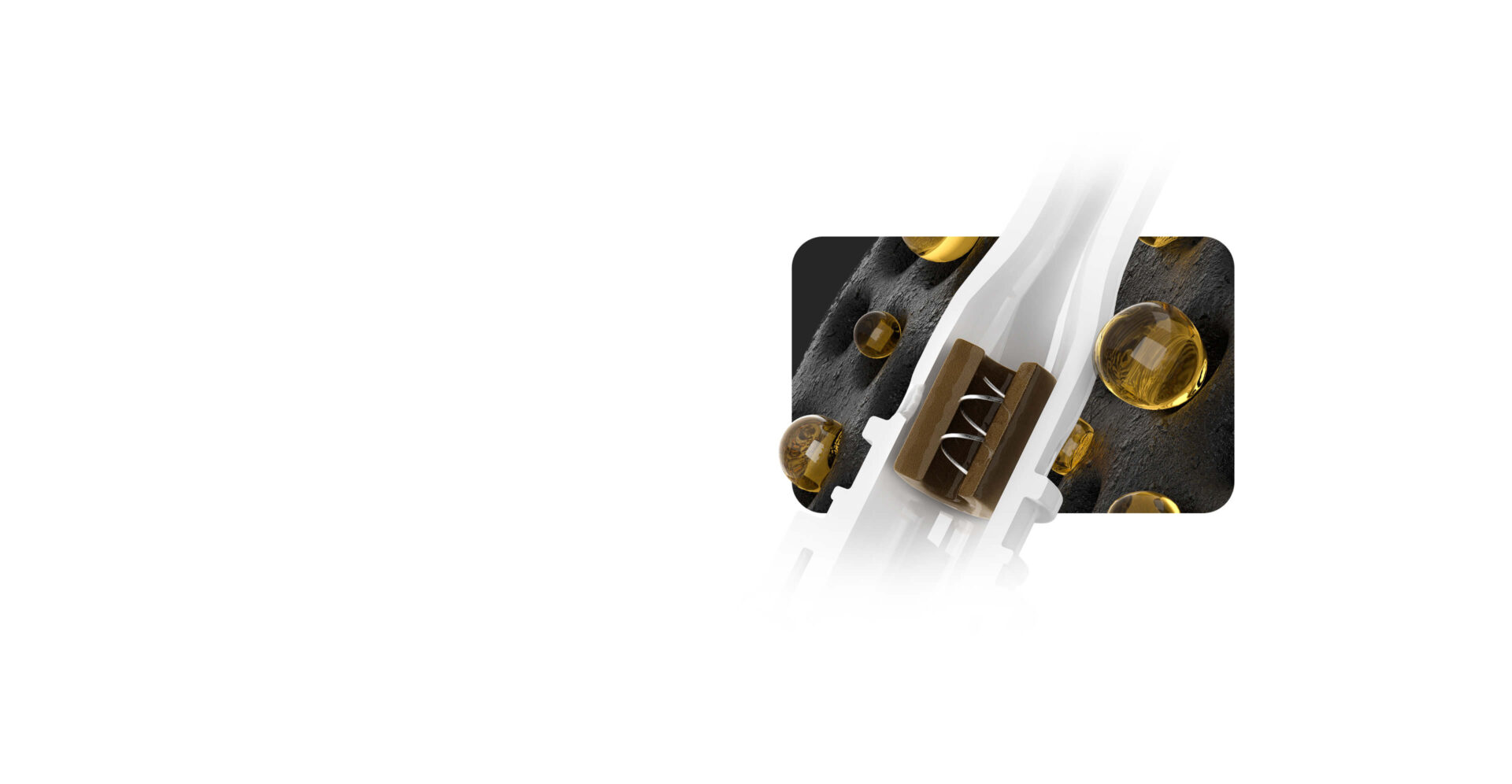

Close-up of a CCELL Ceramic-EVOMAX cartridge with gold details against white swirls | 3DevicesCCELL

Heating element wall and pore structure

The walls and pores of the EVOMAX heating element are engineered to balance oil supply against vaporisation, aiming for a steady oil feed. The cartridge runs at 1.7Ω with a 4 x Φ2mm aperture, which sets the oil inlet size for fill-viscosity planning.

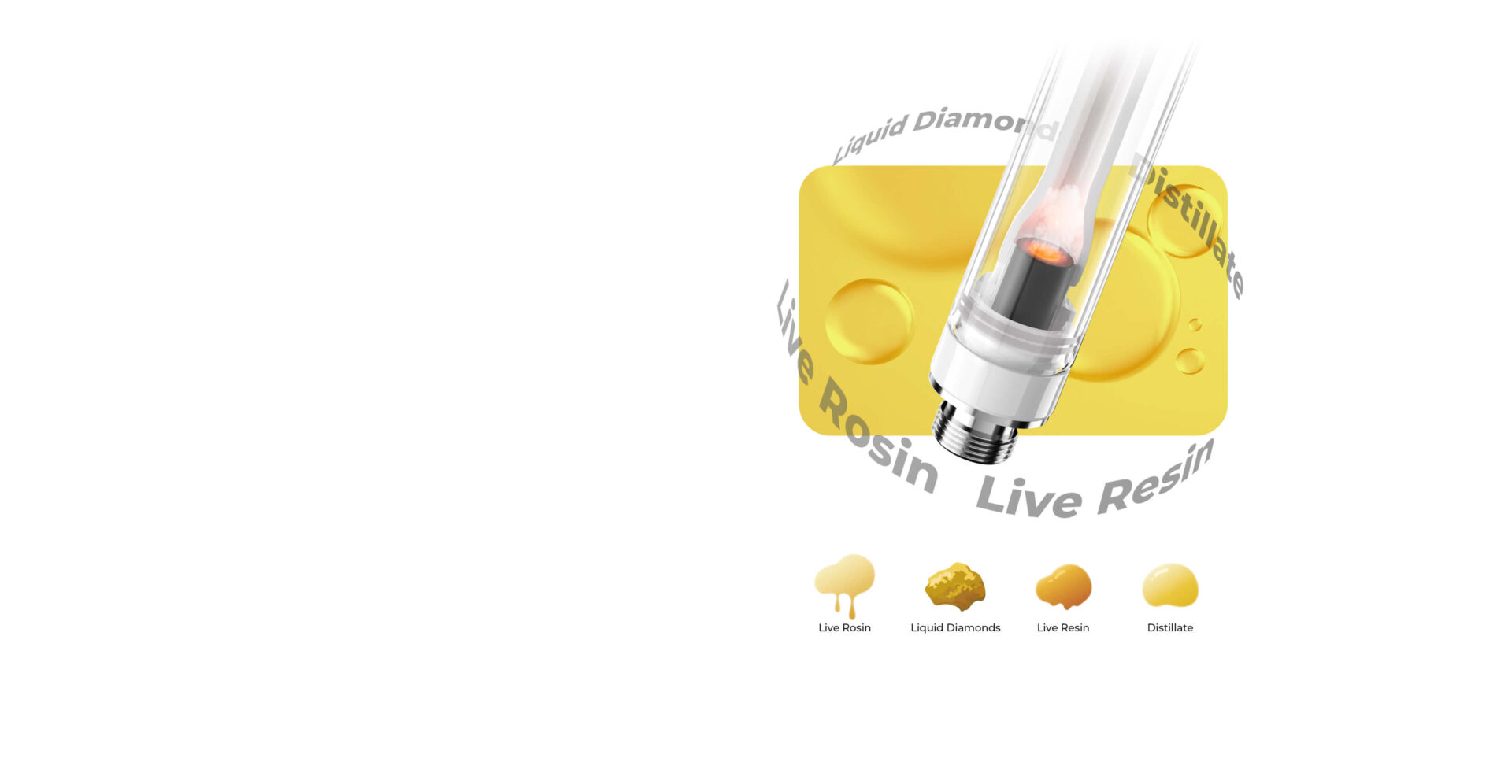

CCELL Ceramic-EVOMAX cartridge in a yellow oil circle with live resin and rosin labels | 3DevicesCCELL

Compatible with all oil types

The optimised heating element structure is specified as compatible with all extract types, including difficult fills such as live rosin and liquid diamonds. One cartridge format can therefore cover distillate and solventless-style products. Supplied empty for licensed filling.

CCELL Ceramic-EVOMAX cartridge with a glowing orange heating core and a temperature bar below | 3DevicesCCELL

Improved heat distribution

The EVOMAX element distributes heat more evenly across the ceramic, which promotes effective terpene vaporisation. This is relevant to brands filling terpene-rich extracts such as live resin. Resistance is 1.7Ω, with 0.5ml, 1.0ml and 2.0ml sizes available.

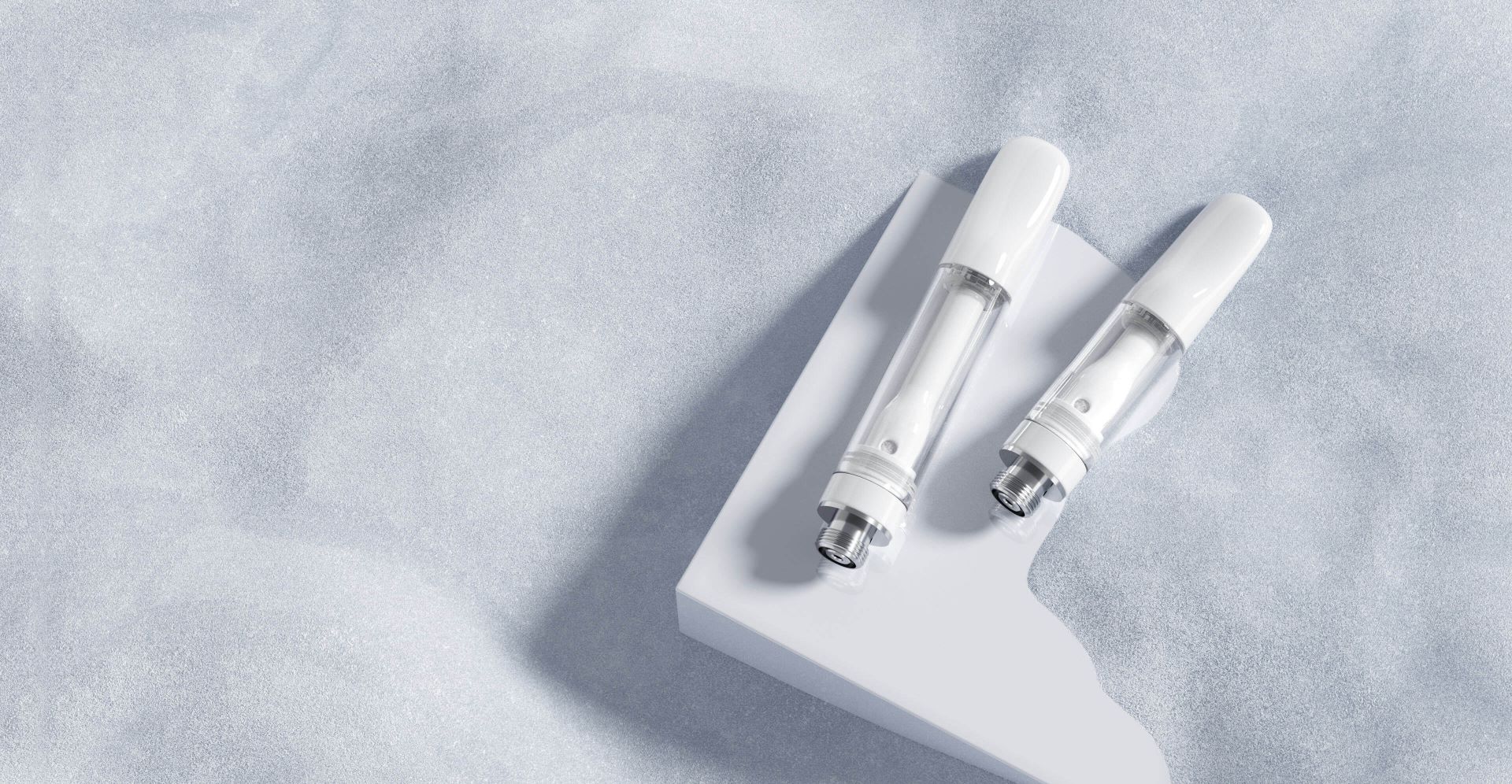

Two white CCELL Ceramic-EVOMAX cartridges lying on a white snowy surface | 3DevicesCCELL

Full ceramic centre post and element

The borosilicate glass body is paired with a ceramic centre post and a ceramic heating element, so the centre post is ceramic rather than metal. Brands that specify metal-free centre posts can use this cartridge as their reference format.

Six CCELL Ceramic-EVOMAX cartridges with colourful illustrated labels laid out diagonally | 3DevicesCCELL

Mouthpiece colour options

Ceramic mouthpieces are listed in Black and White, and can be made in custom colours to match a brand. The snap-fit design is sized for batch capping. Colour requirements should be specified when the order is placed.

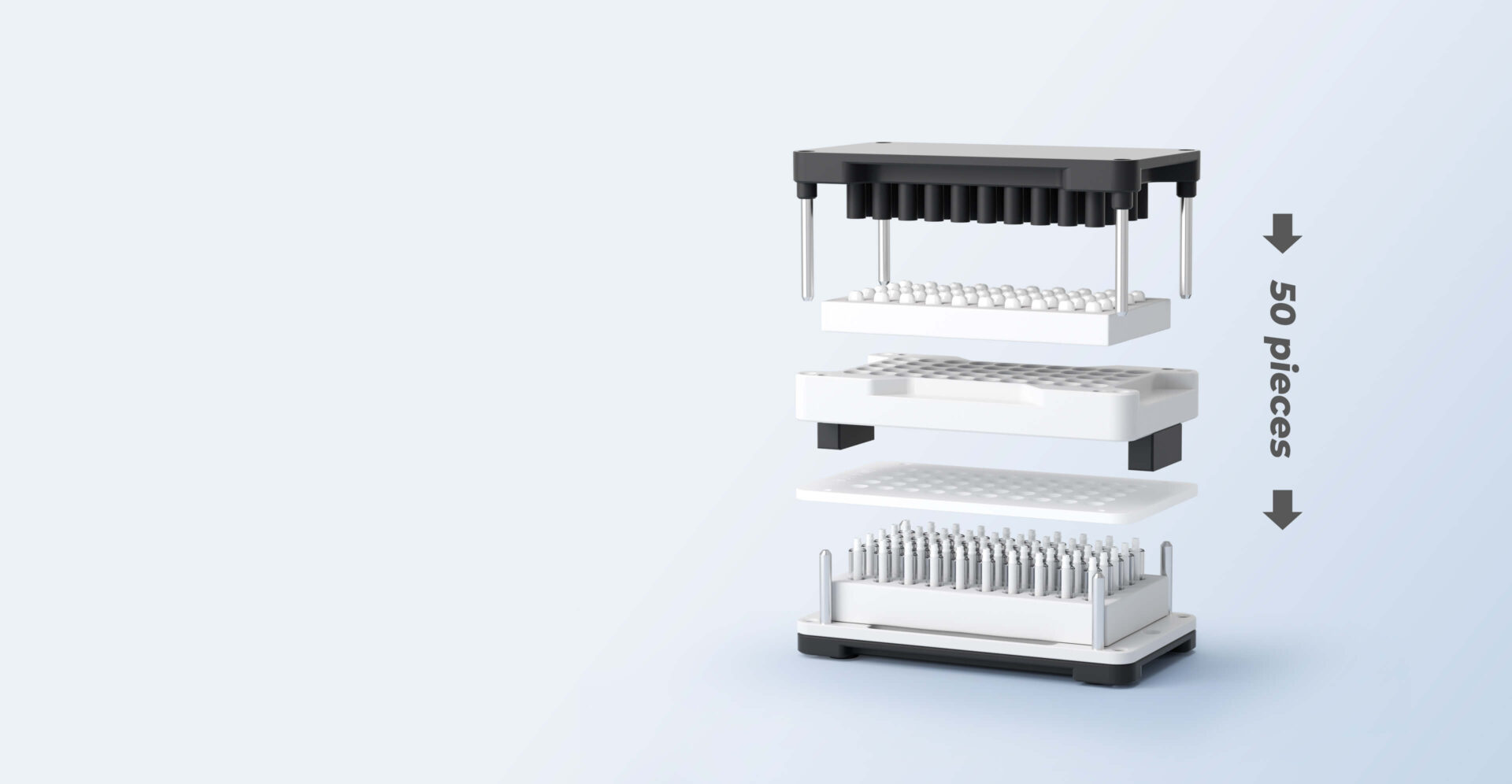

CCELL Ceramic-EVOMAX cartridges packed in a stacked 50 piece tray | 3DevicesCCELL

Snap-fit batch capping, 50 per batch

Snap-fit mouthpieces press on in place of a screw-on step and are batch-capped 50 pieces at a time, giving a tight seal and shortening capping time on filling lines. Sizes are 0.5ml, 1.0ml and 2.0ml.

Heating technology

Inside the CCELL Ceramic-EVOMAX: EVOMAX heating

Built for every oil, including live rosin and liquid diamonds

The CCELL Ceramic-EVOMAX is built around the EVOMAX ceramic core, fed from a 0.5ml/1ml tank. With 4 x Φ2mm oil inlets and a 1.7Ω element, the core is matched to the oil it feeds.

EVOMAX is CCELL's flagship ceramic heating core. CCELL designed its walls and pores to balance oil supply against vaporisation, so thick extracts keep flowing without clogging while thinner oils stay leak-resistant. CCELL describes the result as a clog-free, leak-free, true-to-strain draw from the very first puff.

Designed for Distillate Live resin Live rosin Liquid diamonds
CCELL Ceramic-EVOMAX heating core EVOMAX
  • Clog-resistant Thick oils such as live resin, rosin and liquid diamonds keep wicking through the ceramic.
  • Leak-resistant structure Wall and pore balance tuned to oil supply, according to CCELL.
  • True-to-strain flavour Even heat distribution protects delicate terpenes.
  • No priming puffs The ceramic core is ready from the first draw.
Engineered walls and pores | 3DevicesCCELL
Engineered walls and poresCCELL's comparison of EVOMAX structure with an ordinary core.
Even terpene vaporisation | 3DevicesCCELL
Even terpene vaporisationHeat spreads across the core instead of scorching one spot.

CCELL heating generations

  1. 2016 SE Distillates
  2. 2022 EVO Live resin
  3. 2023 EVOMAX All oils
  4. 2023 HeRo Rosin
  5. 2024 CCELL 3.0 All oils, higher capacity

Performance figures are CCELL's own published claims. Explore CCELL technology

Ceramic-EVOMAX - spotlight 1 | 3DevicesCCELL
Ceramic-EVOMAX - spotlight 2 | 3DevicesCCELL
Ceramic-EVOMAX - spotlight 3 | 3DevicesCCELL
Product guide

About the CCELL Ceramic-EVOMAX

Reviewed by Max CCELL Updated November 3, 2026

The CCELL Ceramic-EVOMAX is a borosilicate glass 510 cartridge built around an EVOMAX ceramic heating element, with a ceramic centre post and a snap-fit mouthpiece. It runs at 1.7 ohm with a 4 x 2mm aperture in 0.5ml and 1ml, and CCELL lists it as compatible with all oils, including live rosins and liquid diamonds.

CCELL Ceramic-EVOMAX key specifications

Specification Detail
Tank volume 0.5ml / 1ml
Dimensions Φ11.0 x 53.9 / 65.2 mm (Φ0.43 x 2.12 / 2.57 in)
Resistance 1.7 ohm
Aperture 4 x Φ2mm
Heating core EVOMAX ceramic
Body Borosilicate glass
Centre post Ceramic
Mouthpiece Snap-fit
Mouthpiece colours Black, White
Batch capping 50 pieces at a time
A 2.0ml version is also available; its body is wider, so check battery fit. Confirm the size you need on your purchase order. Supplied empty.

What is the CCELL Ceramic-EVOMAX?

It is the all-ceramic route within the EVOMAX family. Where the TH2 EVOMAX uses a stainless steel centre post, the Ceramic-EVOMAX replaces it with a ceramic one and, on CCELL's own page, pairs it with a ceramic mouthpiece. The result is a cartridge in which the oil path is built from glass and ceramic rather than metal. CCELL states that the full ceramic design removes the risk of the oil touching heavy metals, and markets it with the line "Pure flavor. Unrivaled safety." Those are CCELL's claims, repeated here for context. We do not add our own safety claims or certifications. The core is EVOMAX, CCELL's December 2023 heating element, which CCELL states was designed to balance oil supply and vaporisation. See our technology page for the background. For brands, the Ceramic-EVOMAX is as much a marketing tool as a hardware choice. A cartridge that can be described honestly as glass, ceramic core and ceramic post gives you a clear and simple message at retail, as long as you stick to CCELL's wording and avoid adding safety promises of your own.

Who is the Ceramic-EVOMAX for?

  • Premium brands that want an all-ceramic story: ceramic post, ceramic core and a glass tank.
  • Producers of terpene-rich or thick extracts, since CCELL positions EVOMAX for all oil types.
  • Flavour-led ranges where the marketing message is purity of taste and a clean oil path.
  • Not ideal for budget runs of thin oils, where the TH2-SE does the job for less.
  • Collector and limited-edition lines that want a distinctive cartridge to anchor a premium range.

Is the Ceramic-EVOMAX compatible with my battery?

Yes, it has a standard 510 thread. Note that the body is Φ11.0mm, slightly wider than the 10.5mm of most CCELL glass cartridges, so check any battery with a tight slot. Most standard 510 batteries and the wider-slot Stylo and Kap are fine.
Battery Connection Fit note
CCELL Stylo Slot, up to 14mm Comfortable fit for 11.0mm
CCELL Kap Slot, up to 14mm Comfortable fit for 11.0mm
CCELL Palm Pro Drop-in magnetic with nut Test-fit with your magnetic nut
CCELL M4B Pro 510 thread Takes cartridges up to 14mm, so 11.0mm fits

Which oils suit the Ceramic-EVOMAX?

CCELL lists it as compatible with all oils and names live rosins and liquid diamonds specifically. Treat that as a ceiling rather than a promise: the quality of the fill, the battery voltage and the temperature at which you test all affect the result. A thicker oil usually needs a gentler draw rate and a slightly warmer start.
Core Era CCELL positions it for
SE ceramic 2016 Distillate and pourable oils
EVO 2022 Distillate and terpene-rich oils
EVOMAX (Ceramic-EVOMAX) December 2023 All oil types
3.0 Bio-Heating December 2024 Distillate and liquid diamonds; well-filtered live resin and rosin

How do I fill and cap the Ceramic-EVOMAX?

  1. Hold the cartridge upright and check the aperture is clear.
  2. Fill to your validated level, leaving a small air gap.
  3. Let the oil settle into the ceramic core before capping.
  4. Fit the snap-fit mouthpiece with a capping tool; the design allows 50 cartridges to be capped in one pass.
  5. Test-fire a sample on a 510 battery before packing.

Ceramic-EVOMAX care, bubbles and leaks

  • Air bubble: a small bubble is normal, because oil absorbs into the ceramic core and a little headspace helps oil flow and reduces leak risk.
  • Leaking: overfilling is the usual cause. Fill less and store upright.
  • No vapour: clean the 510 contact and try another battery.
  • Wider body: if the cartridge will not seat in a battery slot, it may exceed that battery's width limit.
  • Oil wicking slowly: thick fills need time to soak into the core; wait before the first draw rather than pushing the voltage up.

How should I plan a Ceramic-EVOMAX order?

Check the size first. The specification lists 0.5ml and 1ml, at 53.9mm and 65.2mm tall, while a 2.0ml version is also available. Confirm the volume and the length on your purchase order, and make sure your packaging allows for the Φ11.0mm diameter. Then choose Black or White snap-fit mouthpieces. Because this is a premium cartridge, build a short test plan: fill ten, check wicking and leaks after a day, and note flavour at your chosen voltage. That small investment protects the reputation of the finished product. Share your findings with the trade team if you would like help interpreting them, and remember that our hardware chooser can suggest a battery to match.

Ceramic-EVOMAX trade pricing and UK delivery

Tiered trade pricing is shown on this page, ex VAT. Trays go to UK businesses running licensed filling lines, with Black or White mouthpieces across the tank sizes. For volumes and colour choices, ask our wholesale team through the contact page. UK delivery is available, with the free-shipping threshold shown at checkout.

Is the Ceramic-EVOMAX authentic CCELL hardware?

The Ceramic-EVOMAX is authentic CCELL hardware supplied by 3DevicesCCELL, an authorised UK distributor operated by 3Devices Ltd. On arrival, check the Φ11.0mm glass body, ceramic centre post and your mouthpiece colour. Cartridges are sold empty, and CCELL does not fill or sell oil. For CBD use only, and not for minors.
FAQ

Frequently Asked Questions

Can’t see your question? Our UK team is happy to help with products, pricing and orders.

Contact our team WhatsApp us
Why is there an air bubble in my CCELL Ceramic-EVOMAX cartridge?
A small air bubble is normal. Oil absorbs into the ceramic heating element, and a little headspace helps oil flow and reduces leakage risk. A bubble that grows, or oil that runs out of the mouthpiece, is different: check for overfilling or a poorly seated mouthpiece, and contact the trade team if it persists.
Is the Ceramic-EVOMAX compatible with standard 510 batteries?
Yes, it has a standard 510 thread. The body is Φ11.0mm, slightly wider than most CCELL glass cartridges, so test-fit it in any battery with a narrow slot. Batteries listed up to 14mm, such as the Stylo and Kap, take it easily. Magnetic batteries need a nut.
What heating core does the Ceramic-EVOMAX use?
It uses an EVOMAX ceramic heating element, introduced by CCELL in December 2023. CCELL states the core walls and pores balance oil supply and vaporisation, and positions it for all oil types. The listed resistance is 1.7 ohm with a 4 x 2mm aperture. These are CCELL claims, not independent tests.
What is different about the Ceramic-EVOMAX centre post?
The centre post is ceramic, instead of the stainless steel used on the TH2 EVOMAX. CCELL states that the full ceramic design removes the risk of the oil contacting heavy metals. We repeat that as CCELL's statement and make no safety or certification claim of our own.
What oils can I use in the Ceramic-EVOMAX?
CCELL lists it as compatible with all oils, and names live rosins and liquid diamonds specifically. Results still depend on your oil, fill level and battery voltage, so run a small test batch before scaling. We supply the hardware empty and do not fill or sell oil.
What sizes does the Ceramic-EVOMAX come in?
The specification lists 0.5ml and 1ml, at Φ11.0 x 53.9mm and Φ11.0 x 65.2mm. A 2.0ml version is also available. Confirm the size you need on your purchase order. The snap-fit mouthpiece comes in Black or White and allows 50 cartridges to be capped at once.
How do I cap the Ceramic-EVOMAX in bulk?
The snap-fit mouthpiece design lets 50 cartridges be capped in one pass, which suits batch filling lines. Fill to a validated level, let the oil settle, then press the mouthpieces on evenly with a capping tool. Test-fire a sample from each batch before packing.
How much is the Ceramic-EVOMAX wholesale in the UK?
Tiered trade pricing is shown on this page and quoted ex VAT, with lower unit prices at higher quantities. Ask the wholesale team for a quote with your sizes, colours and volumes. Free shipping applies once an order passes the threshold shown at checkout.
Do you deliver the Ceramic-EVOMAX across the UK?
Yes. We deliver across the UK, with any free-shipping threshold shown at checkout. For delivery outside the UK, contact the trade team before ordering so we can confirm availability, carriers and timings. The cartridge is authentic CCELL hardware, sold empty and intended for CBD use only.
