510 Batteries Brand: CCELL Series: M4

CCELL M4 Tiny

Name: CCELL M4 Tiny 510 Battery 200mAh
Brand: CCELL
SKU: 3DC-M4-TINY
Price: 2.08 GBP
Availability: InStock

Be the first to review

Finger-length 200mAh 510 battery

The CCELL M4 Tiny is a finger-length 510 battery in stainless steel, fitted with an LED function indicator, whose 14mm diameter fits CCELL 3.0 cartridges and other 510 thread cartridges. It holds 200mAh in a 14 x 52mm body, charges via USB-C, and Standard 3.6V or Bespoke 2.6V are offered as order combinations.

200mAh Battery
USB-C Charging
standard 510 Thread
inhale activated Activation

Specifications

Battery capacity: 200mAh

Dimensions: 14 x 52 (mm) / 0.55 x 2.05 (in)

Thread: standard 510

Housing: stainless steel

LED function indicator

Activation: inhale activated

Charging: USB-C

Compatibility: 14mm diameter fits CCELL 3.0 cartridges and other 510 thread cartridges

Cartridges not included

Quantity	Per Item Price
From	£ 2.08

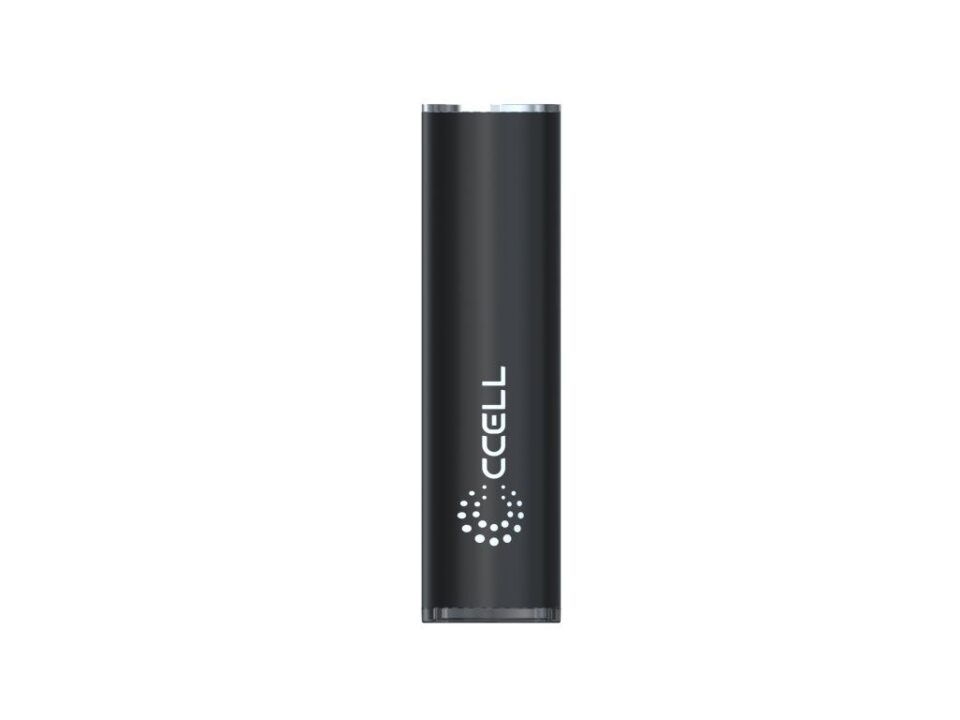

CCELL M4 Tiny 510 battery in black | 3DevicesCCELL

Colour

Combination

Clear

Quantity

Intended use

These products are only intended for CBD use.
Not to be used by minors.

Pairs with: 510 cartridges

See all cartridges

CCELL M4 Tiny fits any standard 510 cartridge. Any of these will work.

Custom branding

OEM battery housing decoration

Make the hardware unmistakably yours. We laser-engrave your logo, batch marks or micro text onto CCELL batteries, pods and selected all-in-ones: a sharp, permanent mark that will not rub or peel off, ordered together with your hardware.

Send your artwork Vector files work best (AI, EPS or SVG).
Approve a proof We engrave a small batch first so you can check the result.
We engrave your order Artwork, colour and quantity go on the same order as your hardware.

See laser engraving

Product guide

About the CCELL M4 Tiny

Reviewed by Max CCELL Updated November 2, 2026

The CCELL M4 Tiny is a finger-length stainless steel 510 thread battery, 14 x 52mm, with a 200mAh cell, an LED function indicator, inhale activation and USB-C charging. Its 14mm diameter is listed to suit CCELL 3.0 cartridges and other 510 thread cartridges, and it is offered in Standard 3.6V or Bespoke 2.6V.

CCELL M4 Tiny key specifications

Specification	Detail
Battery capacity	200mAh
Dimensions	14 x 52 mm
Thread	Standard 510
Housing	Stainless steel
Indicator	LED function indicator
Cartridge fit	14mm diameter, listed to fit CCELL 3.0 and other 510 thread cartridges
Voltage options	Standard 3.6V or Bespoke 2.6V (order combinations)
Activation	Inhale
Charging	USB-C
Colours	Black, Silver, White
Cartridges	Not included

Specifications per CCELL product data.

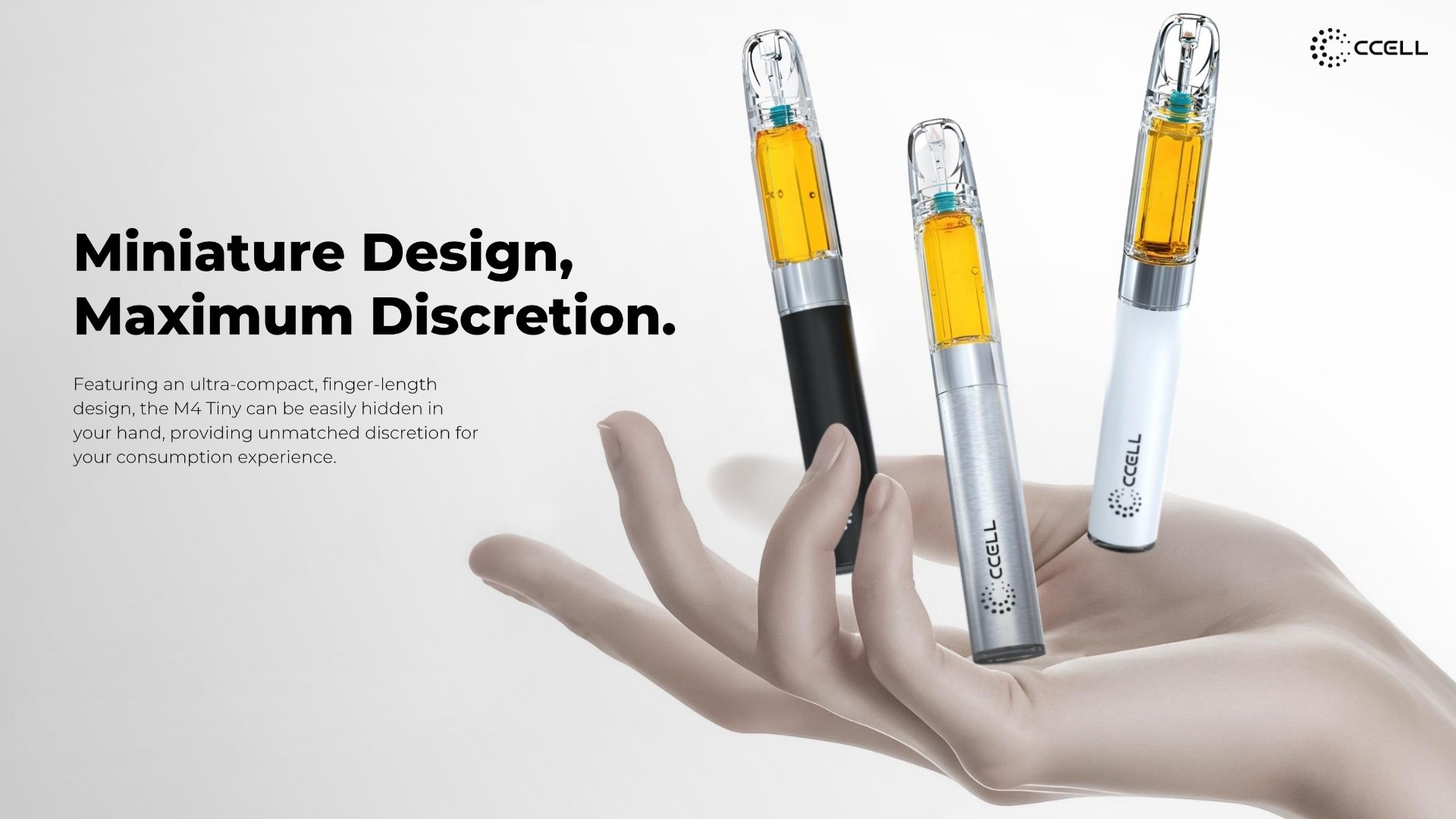

What is the CCELL M4 Tiny?

The M4 Tiny is the shortest battery in the M4 family. At just 52mm long it is roughly the length of a finger, and it packs 200mAh into that tube, a smaller cell than the 290mAh in the longer CCELL M4 battery. The housing is stainless steel with an LED function indicator, and there are no buttons, because the battery fires when you draw. If you need preheat and three voltage steps, look at the CCELL M4B Pro battery instead. What makes it relevant right now is the width. The 14mm diameter is listed as suiting CCELL 3.0 cartridges, the postless, higher-capacity range that includes the Vita and Diama. Those cartridges are wider than the classic 10.5mm glass tanks, and a battery whose body matches them looks balanced rather than top-heavy. Our CCELL 3.0 hub explains the platform. Searchers looking for a short battery usually want something that fits in a coin pocket or a small bag. At 52mm, the M4 Tiny is one of the shortest 510 batteries we list, and the stainless steel body feels more substantial than its size suggests. The three neutral colours make it easy to match to existing packaging.

Who is the M4 Tiny for?

Brands launching CCELL 3.0 cartridges who want a matching battery in the same width, so the finished kit looks designed rather than assembled.
Retailers after a compact battery that still carries a 200mAh cell.
Producers who set output at order stage, choosing between Standard 3.6V and Bespoke 2.6V for their oil.
Not ideal for anyone who wants voltage steps, preheat or a screen. The Palm Pro or Stylo covers those.
Brands that sell on size. A finger-length battery with a decent cell is a clear selling point against longer pens.

Does the M4 Tiny fit CCELL 3.0 cartridges such as Vita and Diama?

Yes: the 14mm diameter fits CCELL 3.0 cartridges and other 510 thread cartridges. The Vita is 10.5mm across in 1ml and 14.1mm in 2ml, while the Diama lists diameters up to 14.8mm, so a sample fit is sensible before you commit to a pack-out.

Cartridge	Capacity	Listed diameter	Advice
CCELL Vita	1ml / 2ml	10.5mm / 14.1mm	Order a sample pair first
CCELL Diama	1ml / 2ml	Up to 14.8mm	Confirm the fit and the look of the assembly
CCELL TH2-SE	0.5 / 1 / 1.2ml	10.5mm	Narrower than the battery; fits the thread
CCELL Kera	0.5ml / 1ml	10.5mm	Narrower than the battery; fits the thread

Standard 3.6V or Bespoke 2.6V on the M4 Tiny?

These two combinations are offered when you order. They are not settings the user can change. The higher output heats harder and the lower is gentler, so a thin oil or a leak-prone cartridge may behave better on 2.6V, while a thick fill may prefer 3.6V. Run a small trial with both versions, record the taste and how the cartridge wets, and then lock the choice for production. Consistency is the point: if every battery in a batch has the same output, every customer gets the same draw. The hardware chooser is a useful starting point for matching battery and cartridge.

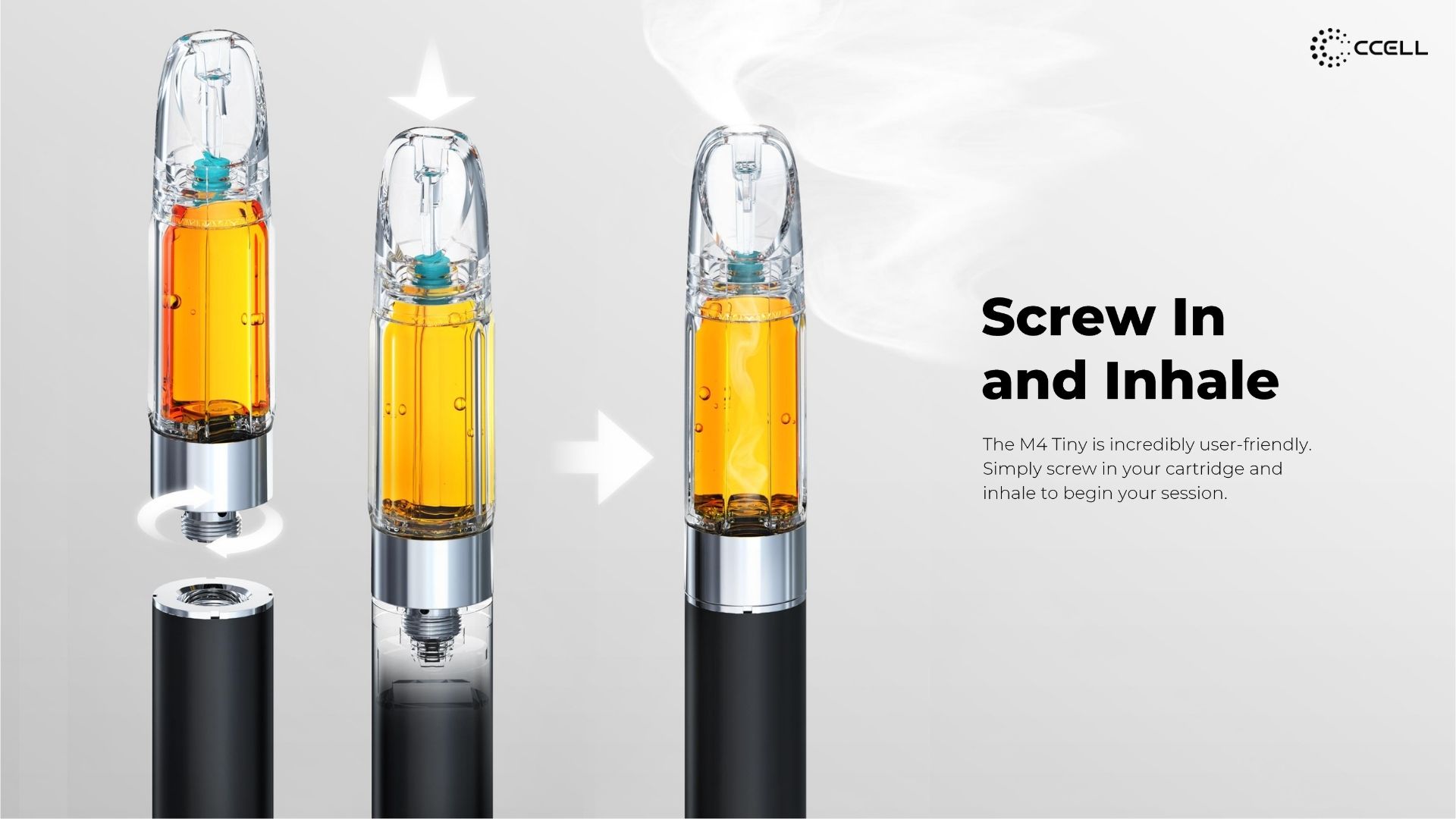

How do I use the M4 Tiny?

Screw a CCELL 3.0 or other 510 thread cartridge onto the top until it is snug.
Draw on the mouthpiece. Inhale activation fires the battery without any button.
Watch the LED function indicator for status.
Recharge over USB-C when the battery runs low.
Store it upright with the cartridge fitted, away from heat and children.

M4 Tiny care, leaks and troubleshooting

No response: unscrew the cartridge, wipe the thread and pin dry and refit. Try another cartridge to rule out a blocked one.
Leak at the base: postless 3.0 cartridges have a wide tank, and oil on the pin can short the battery. Clean the thread and test on the 2.6V version.
Charging problems: use a known 5V USB-C source, disconnect at full and avoid overnight charging. Details are in our charging guide.
Cartridge looks loose: a wider cartridge should sit flush with the 14mm body; if it overhangs, check you have the right size.
Battery warm after charging: a little warmth is normal, but if it is too hot to hold, unplug it and let it cool before use.

M4 Tiny trade pricing and UK delivery

You will find tiered trade pricing on this page, quoted ex VAT. The M4 Tiny is aimed at UK businesses that fill CCELL 3.0 or other 510 cartridges and want a finger-length battery to match, in Black, Silver or White. Tell us your colour and voltage split through the contact form and we will confirm tray quantities. Orders ship within the UK, with the free-shipping threshold displayed at checkout. If you are planning a launch around a new 3.0 cartridge, ask for the battery and cartridge on the same quote so quantities, colours and delivery line up, and mention any customisation you would like us to price.

Is the M4 Tiny authentic CCELL?

3DevicesCCELL, an authorised UK distributor operated by 3Devices Ltd, supplies the M4 Tiny as authentic CCELL hardware. Its 14 x 52mm stainless steel body and 200mAh cell are the identifying details to check on arrival. No cartridge or oil is included, since CCELL does not fill or sell oil. The battery is for CBD use only and is not for minors.

M4 Tiny compared with the other M4 batteries

Battery	Capacity	Size	Output
M4 Tiny	200mAh	14 x 52mm	Standard 3.6V or Bespoke 2.6V
M4	290mAh	10.5 x 76.35mm	Standard 3.6V or Bespoke 2.6V
M4B Pro	290mAh	10.5 x 90.75mm	2.8 / 3.2 / 3.6V, 10s preheat

FAQ

Frequently Asked Questions

Can’t see your question? Our UK team is happy to help with products, pricing and orders.

Contact our team WhatsApp us

Does the CCELL M4 Tiny fit CCELL 3.0 cartridges?

Yes. The 14mm diameter is described as fitting CCELL 3.0 cartridges and other 510 thread cartridges. Some 3.0 formats are wider than 14mm, such as the Diama at up to 14.8mm, so order a sample pair first to check fit and appearance.

What battery capacity does the M4 Tiny have?

The M4 Tiny has a 200mAh cell, smaller than the 290mAh in the longer M4 and M4B Pro, which suits its shorter 52mm body. It charges over USB-C and fires by inhale activation, so no button is needed for normal use.

What is the difference between Standard 3.6V and Bespoke 2.6V?

They are output combinations selected when you order, not user settings. Standard runs at 3.6V and Bespoke at 2.6V. The higher output heats harder, the lower is gentler. Confirm which suits your oil before ordering, ideally by testing a small batch on both versions.

Does the M4 Tiny use CCELL 3.0 heating?

No, the battery has no heating core. The ceramic heating element sits inside the cartridge. The M4 Tiny is simply sized to suit CCELL 3.0 cartridges and other 510 thread cartridges. Choose the cartridge, such as Vita or Diama, to decide which heating technology you are using.

Is the M4 Tiny magnetic?

No. The M4 Tiny has a standard 510 thread, so cartridges screw on rather than drop in. If you want a magnetic drop-in connection, the Palm Pro, Sandwave and Fino list one. Make sure your cartridge has a standard 510 thread before ordering a batch.

How do I charge the M4 Tiny?

Charge it with a USB-C cable from a known 5V source. Disconnect once it is full, avoid leaving it on charge overnight, and stop if it gets hot. If it will not charge, wipe the cartridge thread and pin dry, because oil on the contact can cause a short.

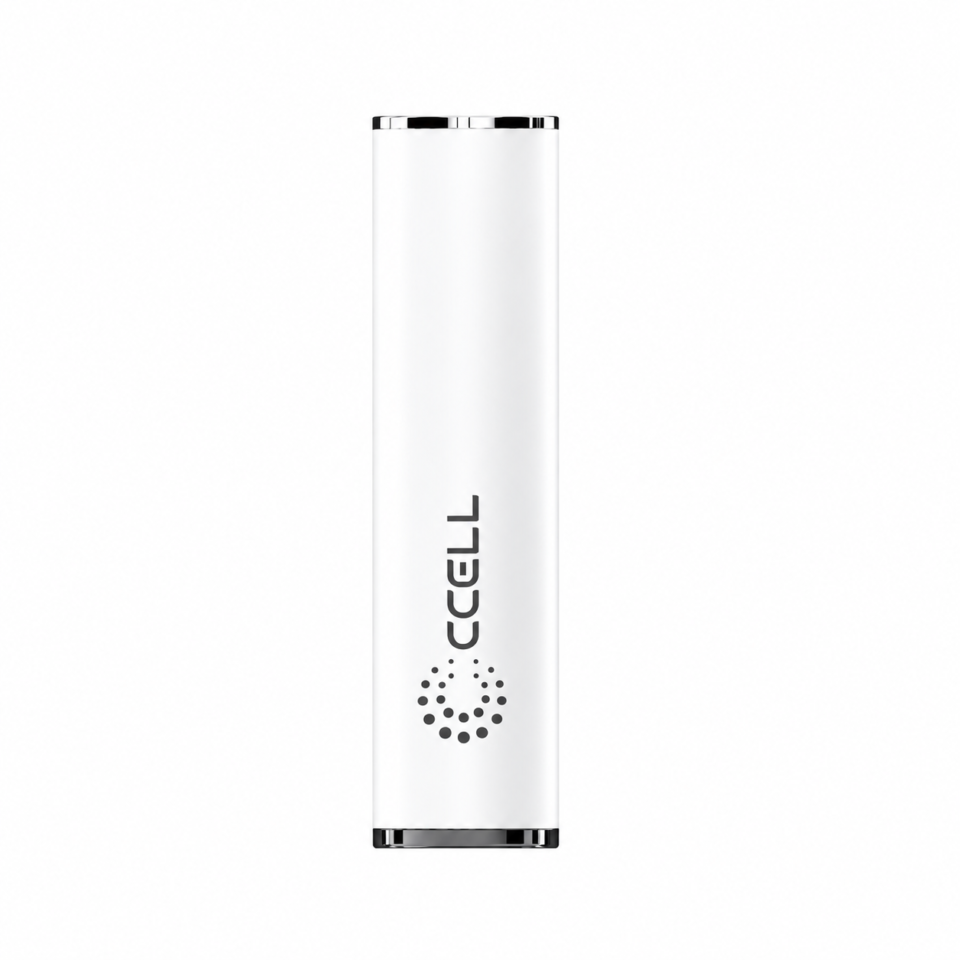

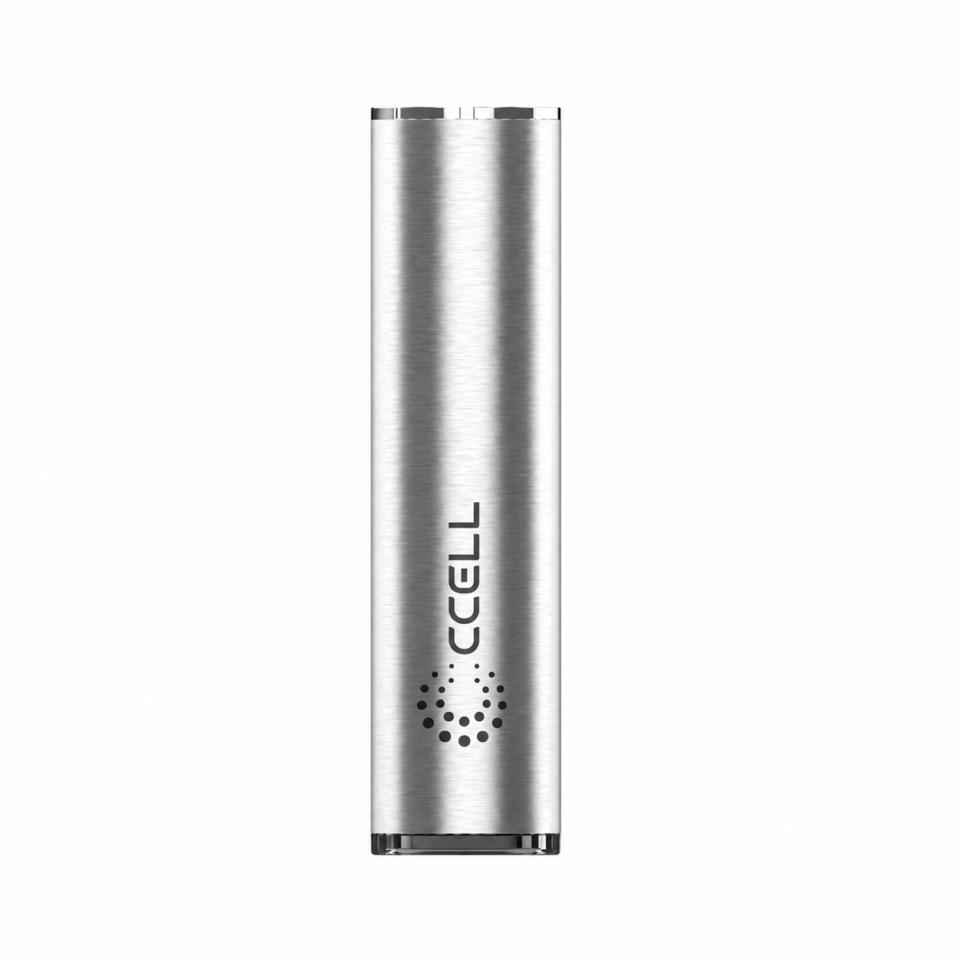

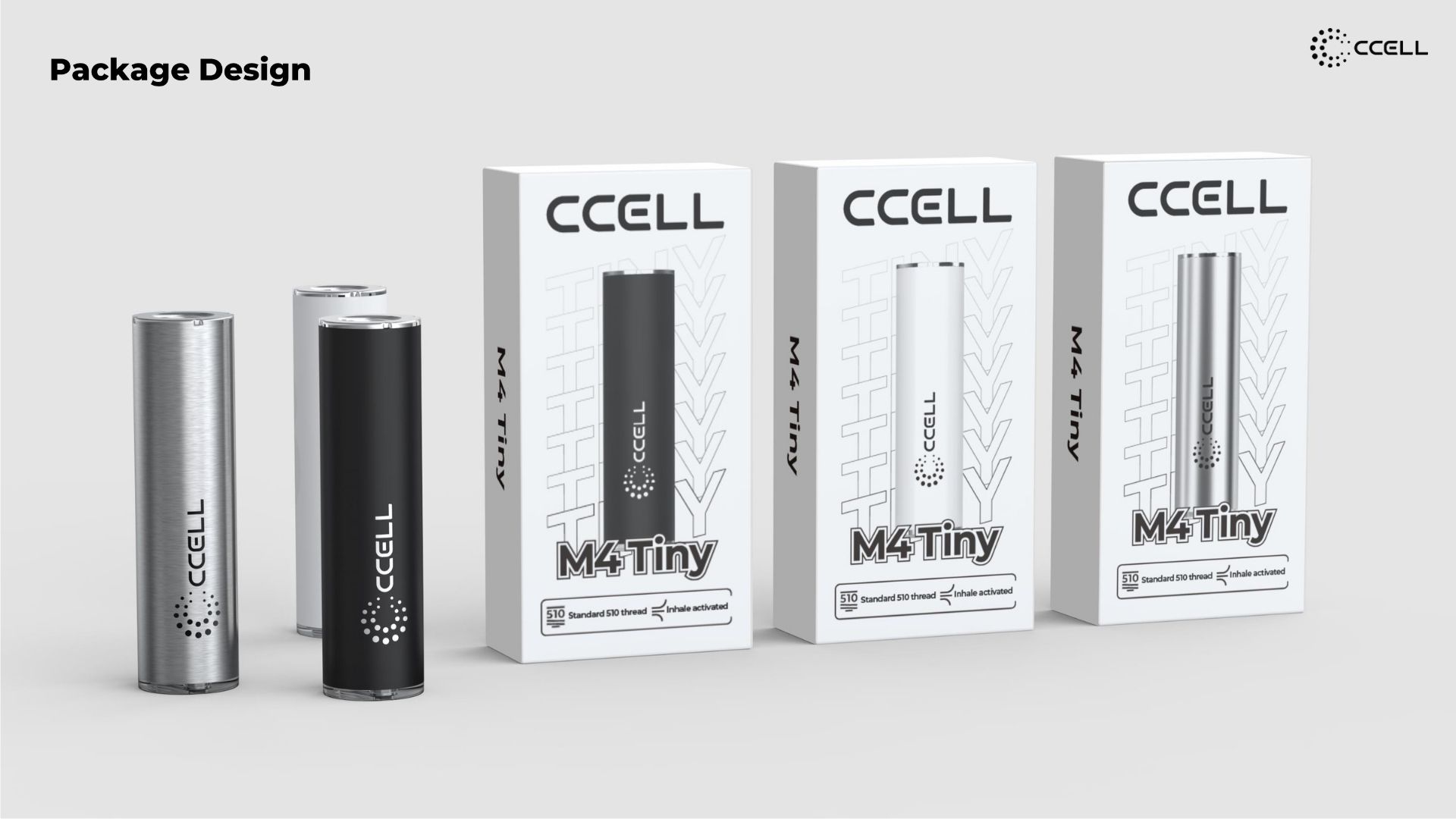

What colours does the M4 Tiny come in?

The M4 Tiny is offered in Black, Silver and White, with a stainless steel housing. Each colour is available in the Standard 3.6V or Bespoke 2.6V combination. If you prefer a decorative finish, the Crystalline Edition comes in Blue, Green and Purple.

How much is the M4 Tiny wholesale in the UK?

Tiered trade pricing is shown on this page and quoted ex VAT, falling as quantities rise. Give the trade team your colour and voltage split for a confirmed quote. Free shipping applies once an order passes the threshold shown at checkout.

Can the M4 Tiny be ordered with a Vita or Diama cartridge?

We sell the M4 Tiny and the Vita and Diama as separate hardware items, so you can quote them together on one enquiry. Mention both in your message and we will confirm quantities. Cartridges are sold empty, and the M4 Tiny is supplied without cartridges.

Is the CCELL M4 Tiny authentic?

Yes. 3DevicesCCELL is an authorised UK distributor of authentic CCELL hardware, operated by 3Devices Ltd. The housing is stainless steel. The M4 Tiny is supplied without oil, and CCELL does not fill or sell oil. It is intended for CBD use only and is not for minors.
